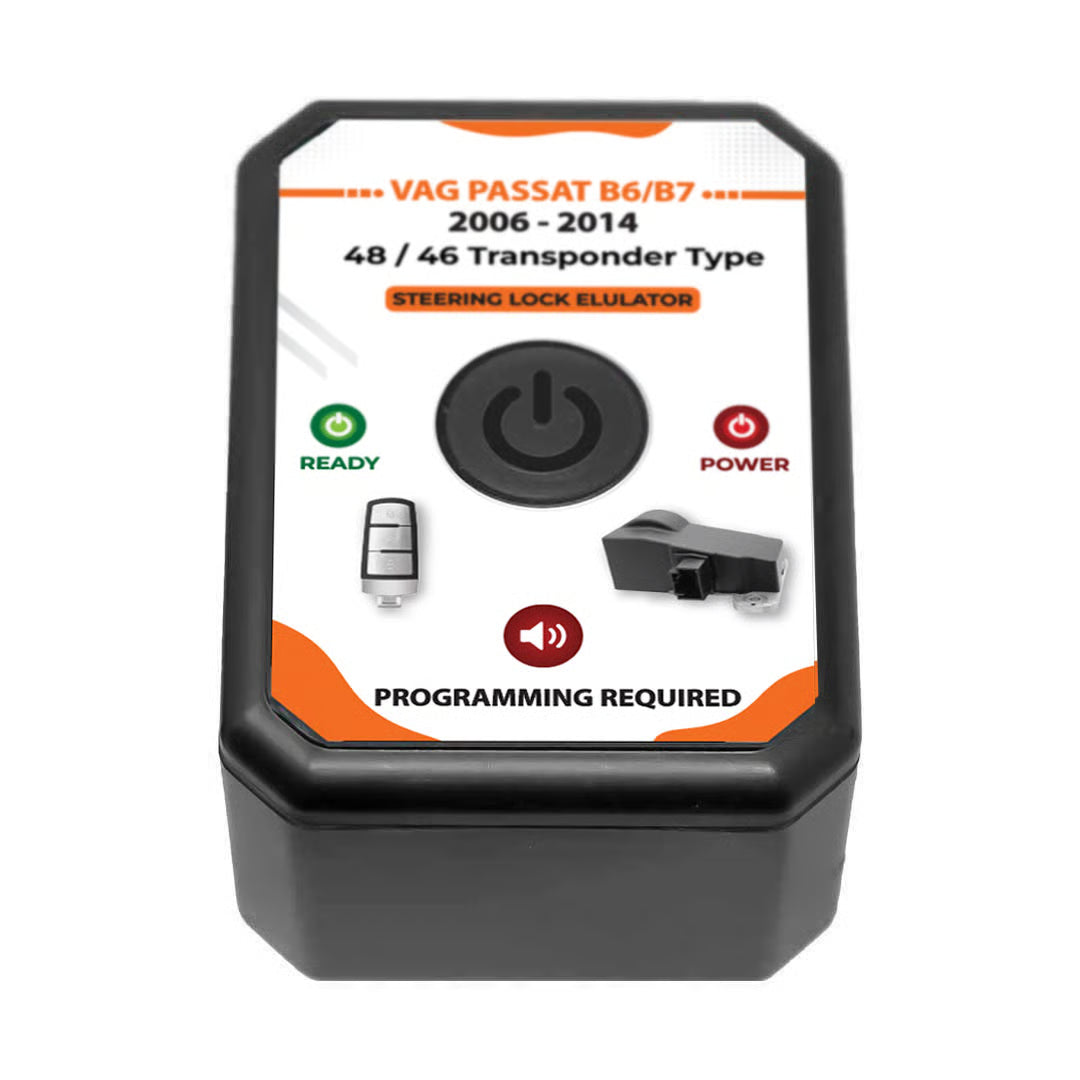

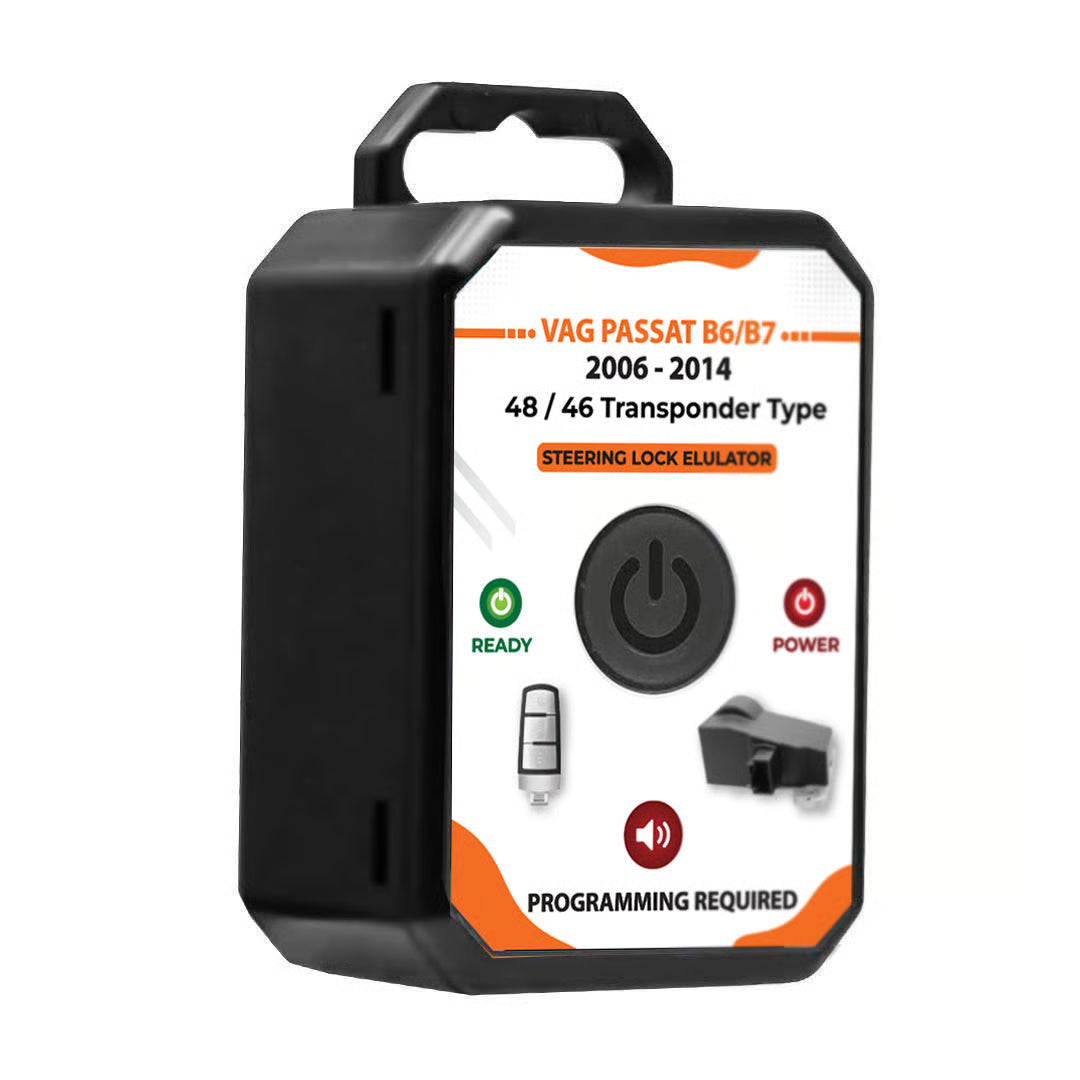

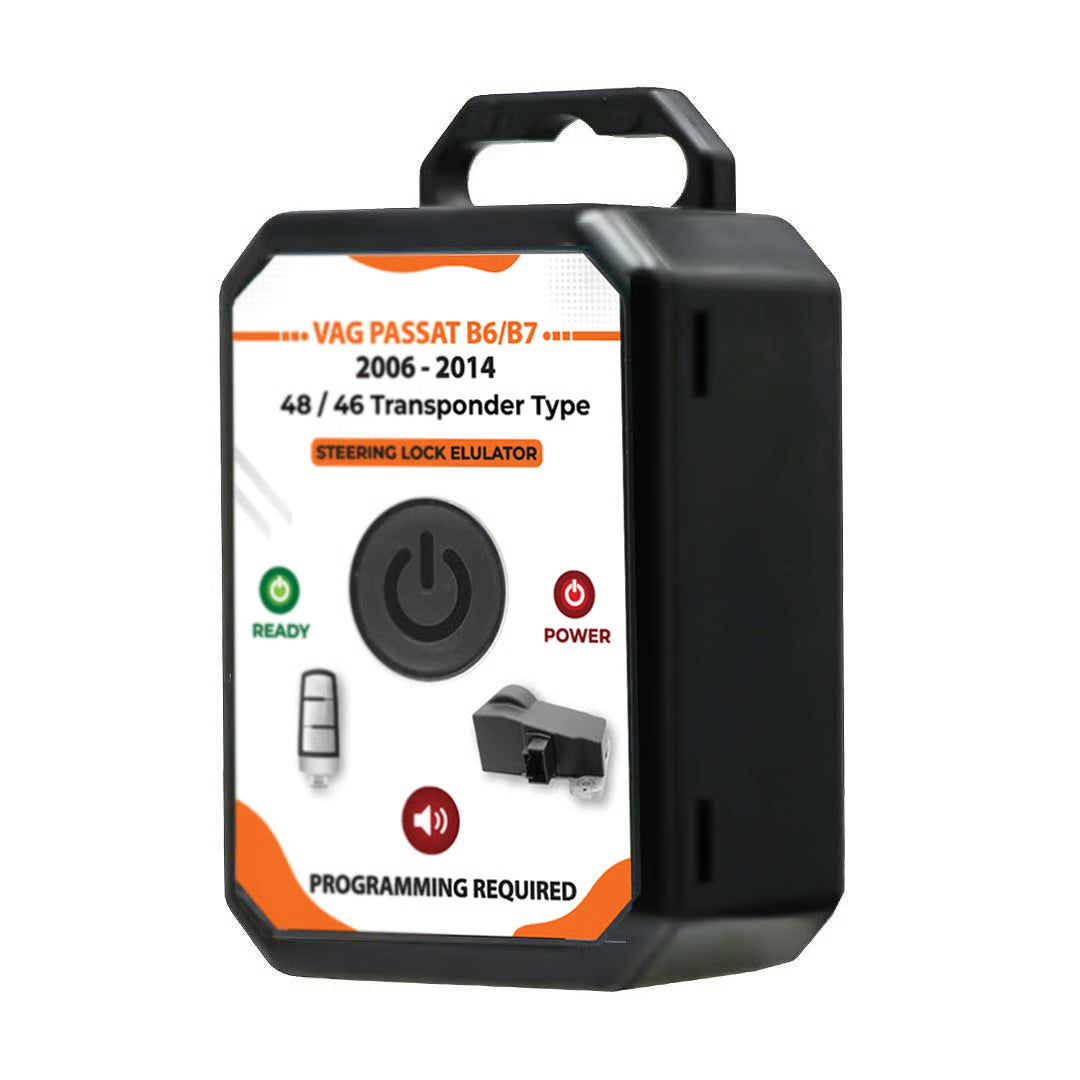

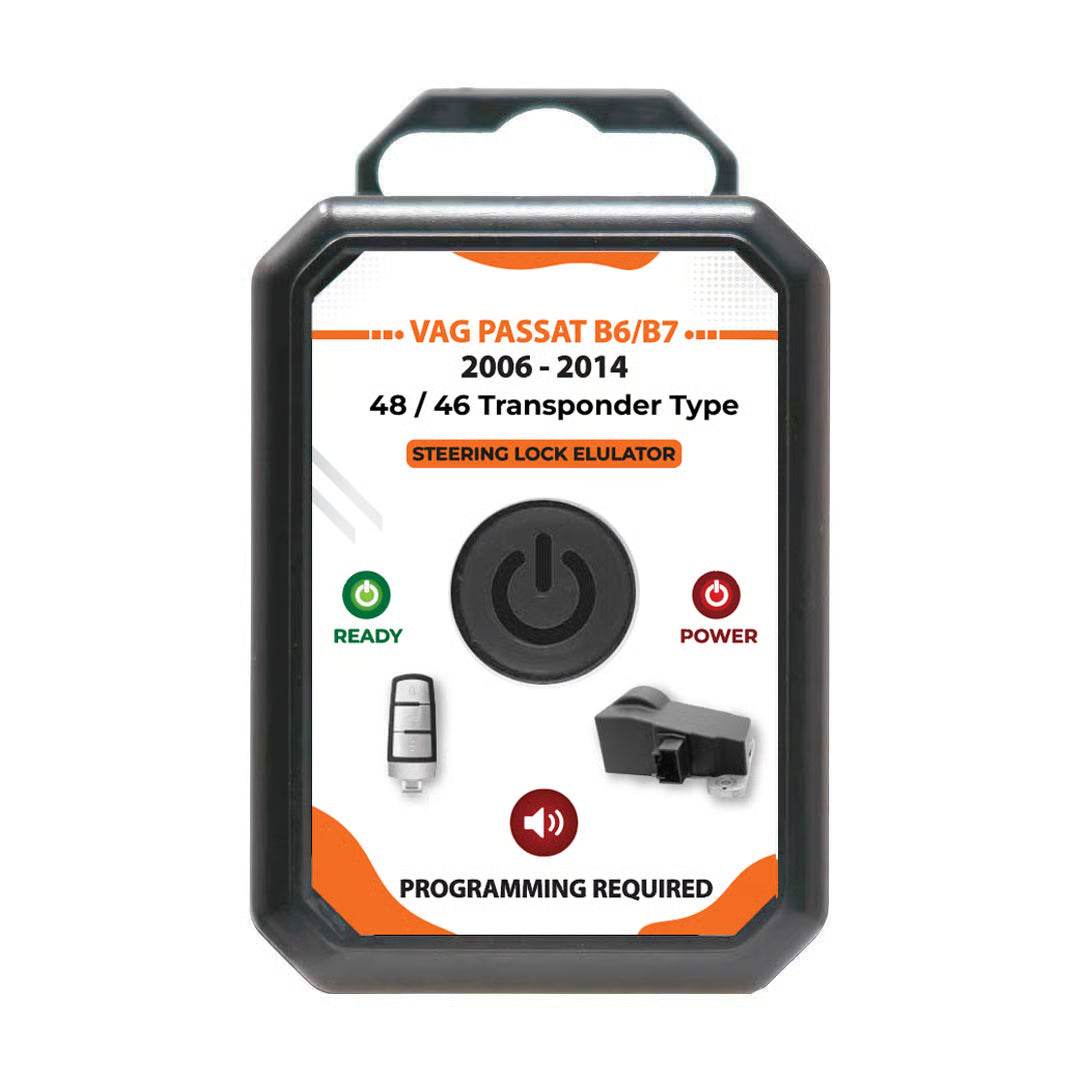

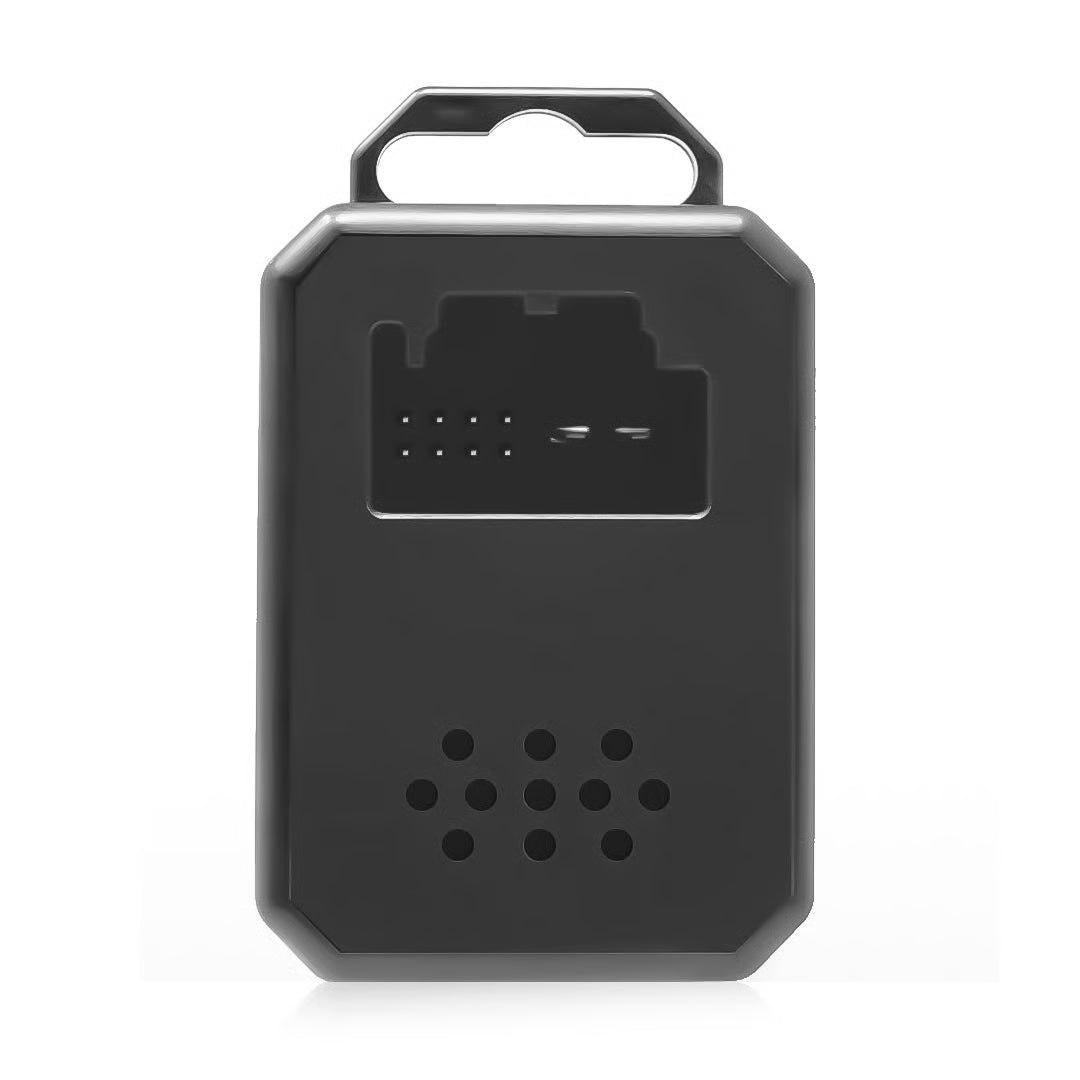

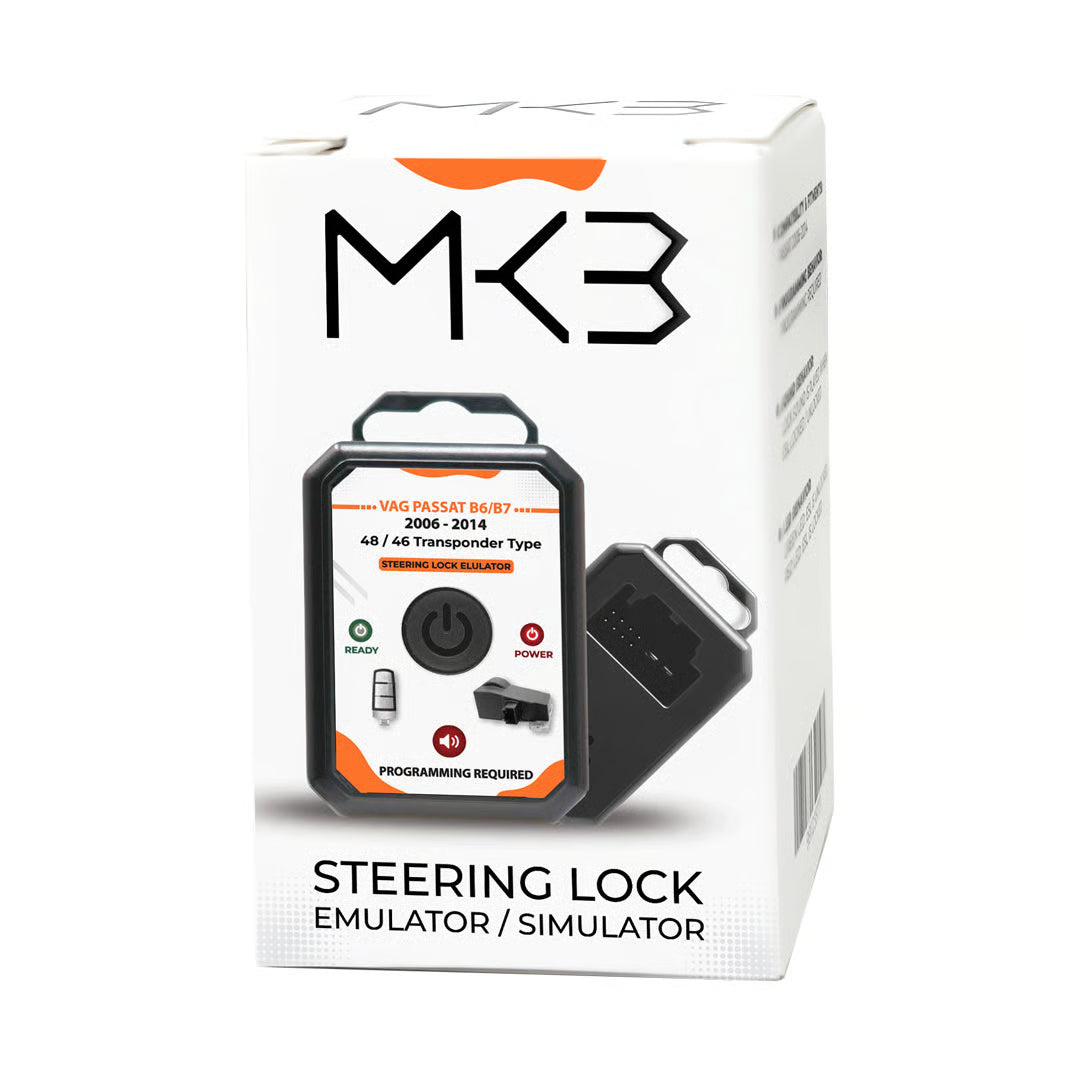

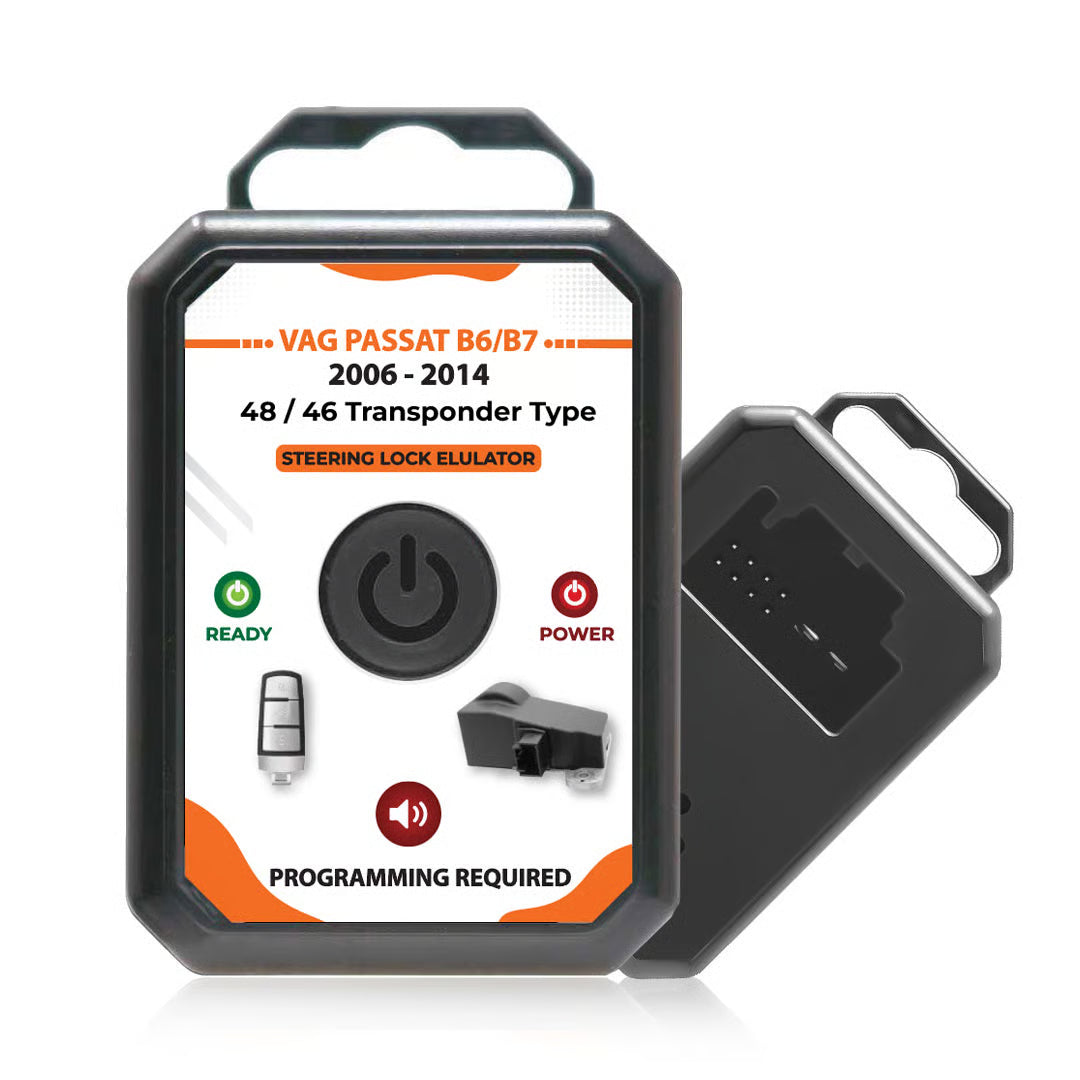

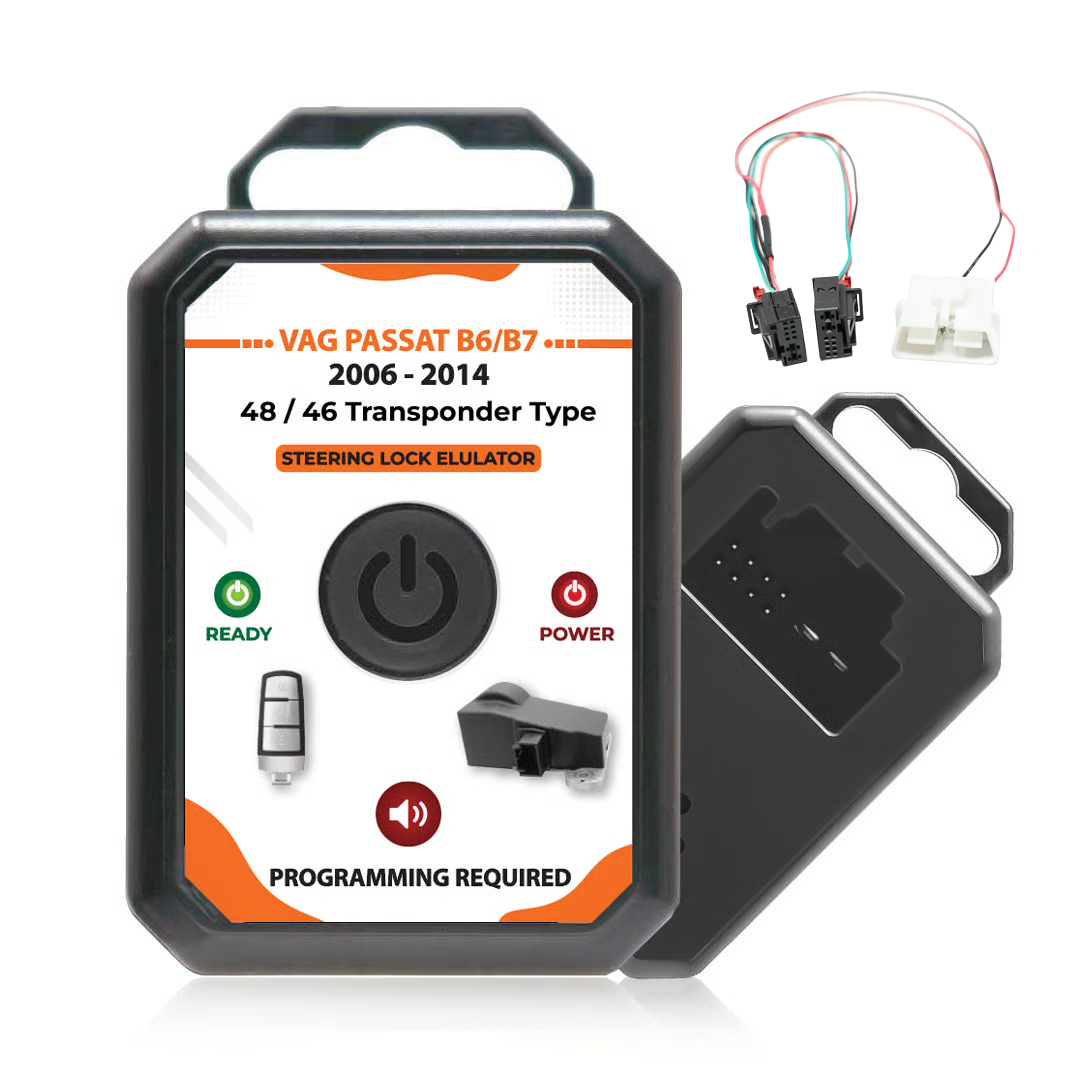

Passat B6/B7 MEGAMOS 48 2006 - 2014 ESL ELV SCL Steering Lock Emulator + Connection Adapter
REQUIRES PROGRAMMING
Check Compatibility Details
SKU: MK12357
In stock! Ships within 1-2 business days.
1-Year MK3 Warranty
Lightning Fast UK Delivery
Passat B6/B7 MEGAMOS 48 2006 - 2014 ESL ELV SCL Steering Lock Emulator + Connection Adapter
Compatible Models & Part Numbers
Compatible Part Numbers
| 48 / 46 Transponder Type Only |
Models
| Brand | Model | From Year | To Year |
|---|---|---|---|
| Volkswagen | Passat | 2006 | 2014 |
Videos:
Product Description
Passat B6/B7 MEGAMOS 48 2006 - 2014 ESL ELV SCL Steering Lock Emulator + Connection Adapter
Needs to be connected to the old original ESL which you can remove after programming is completed. Programming successfully means IMMO OFF of the car
Volkswagen VW Emulator Fitments:
VW Passat cars, coverage from 2006 and up to 2014. Emulates electronic steering lock module which incorporates steering lock module itself and key reader (base station) for Megamos-48 / 46 keys.
Emulator replaces both. Must store IMMODATA, ESL_ID and KEY_ID before usage.
Side effect – car can be started without valid transponder key using any suitable keyblank which simply fits into key slot.
Volkswagen VW Emulator Notes:
- If The car has a faulty steering lock. It is not starting
- The key should be out of the ignition slot before you remove the comfort
Volkswagen VW Emulator Installation:
- Remove the comfort of the car located in front of the 1st passenger seat.
- Simple steps needed to program it and get it working
- Read the eerprom ST-M95320 in the comfort by any device supporting it( vvdi prog, orange 5, .....)
- Save that dump file and write it on the eeprom of the emulator.

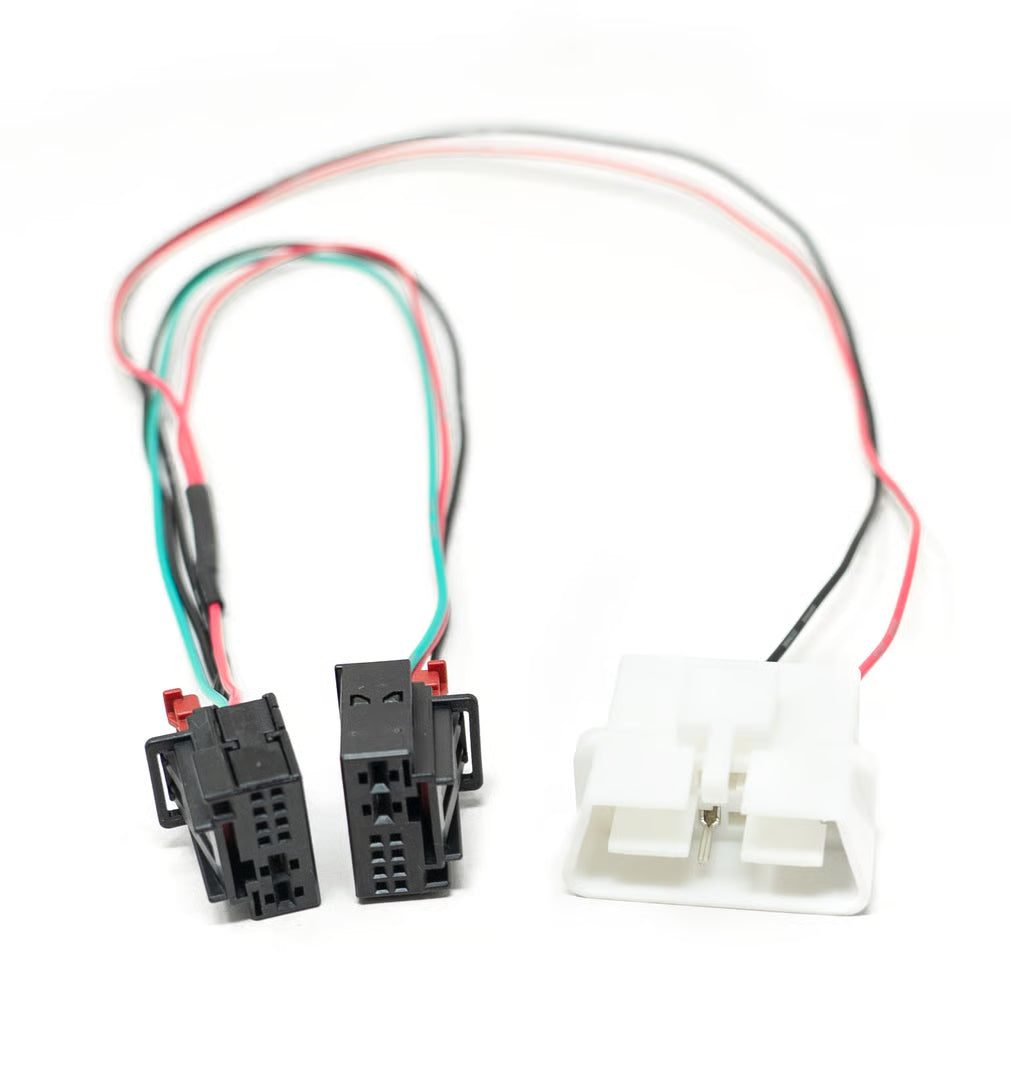

- We need the original ELV to do synchronization with our MK3 emulator by the MK2358 connection adapter
- After connecting the OBD plug and the original and mk3 emulators, the green and red light start flashing for 2-3 minutes before the green light works alone
- Plug the MK3 emulator in place of the original ELV which is not needed anymore.
- Return the comfort to its place in the car.
- The car starts successfully.
Important Note
- Megamos 48 Transponder Type:
After Connecting The Mk3 Emulator, The Car Becomes Immo Off, And It Is Possible To Program New Keys Through The Comfort Module. - Proximity Remote Key; 46 Transponder Type:After Applying Mk3 Emulator The Car Becomes Immo Off, And You Will Not Be Able To Program Any New Keys Until You Reinstall The Original Steering Lock.
Note on compatibility
- It is the responsibility of the buyer to check compatible part numbers / models.
- All available information from the manufacturer regarding compatibility is detailed in the listing, and accompanying videos.
- RX Diagnostics does not have any additional compatibility information, as we do not manufacture these.
- If you are unsure of compatibility, please hold off on purchasing and conduct research on vehicle forumns, groups etc.
- Whilst we appreciate many peoples first instinct is to email us asking, all
- we can do is refer to the manufacturers published compatibility - outlined in the listing.
- Whilst most emulators work on a wider range of vehicles, we do not have enough data to advsie on this. Only what the manufacturer states. which is on the listing.
- Emailing us registration numbers or models does not reveal any additional information. All compatibility information is maticulously published on the listing.
- We cannot advise on programming models that require this. These units are designed for trained auto technicians that use a variety of tools / software. Please conduct your own research on programming before placing an order on those models.
