For Yamaha Immobiliser Diagnostic Emulator 2004 - 2021 MULTI MODEL VARIANT

For Yamaha Immobiliser Diagnostic Emulator 2004 - 2021 MULTI MODEL VARIANT

£24.99 GBP
£24.99 GBP
Sale Sold out

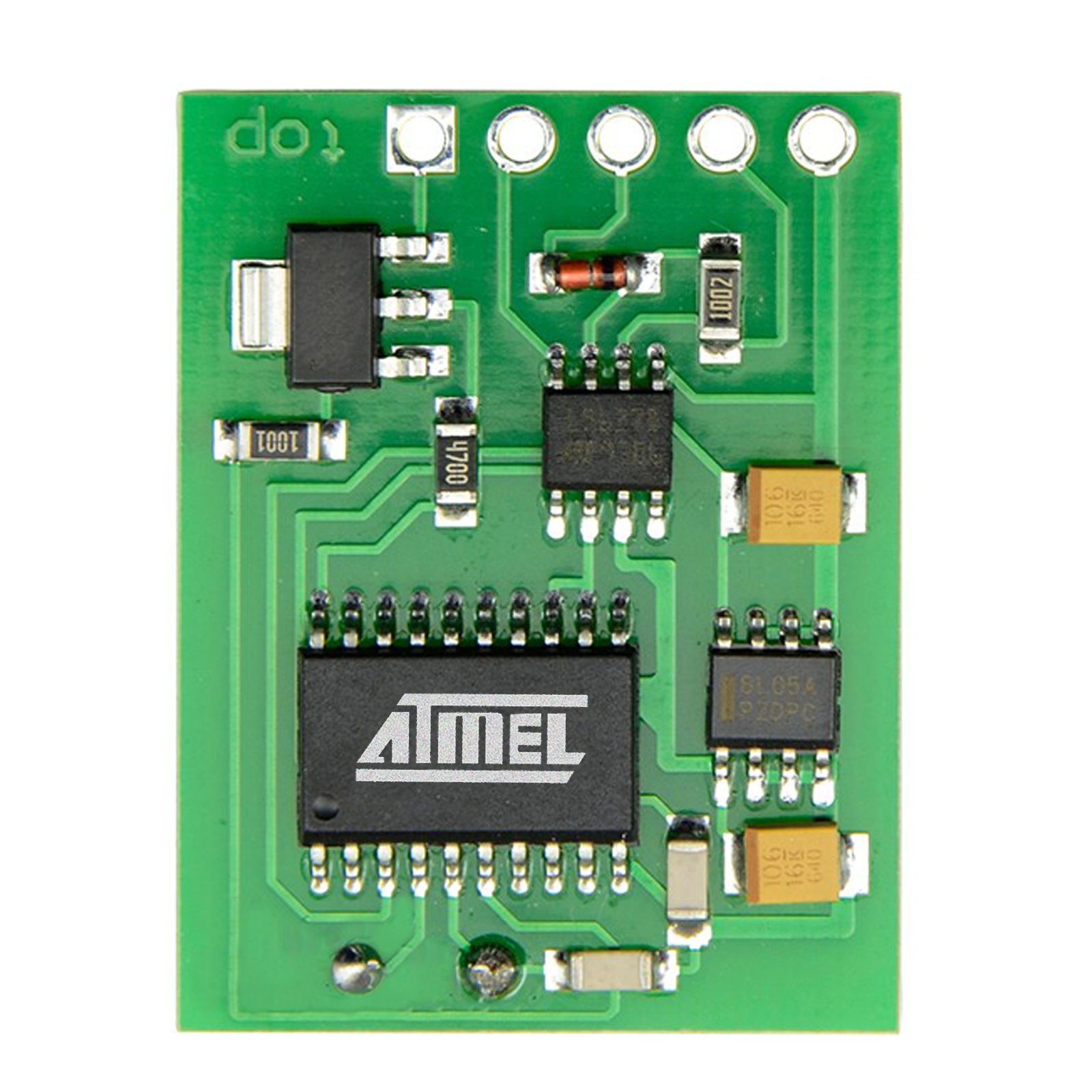

For Yamaha Immobiliser Circuit For Motorcycles and Scooters Yamaha 2004 To 2020

Genuine ATMEL / MICROCHIP EEPROM

Multi Vehicle Model - Works across the range of Yamaha models

Package:
1x Yamaha Immobilizer circuit for Motorcycles and Scooters Yamaha 2004 To 2020

Descriptions:

Compatible Yamaha 2002 - 2021 models:

✔ YZF R1 / YZF R6
✔ FZ6N / FZ6S
✔ XJ6
✔ T-MAX
✔ X-MAX
✔ V-MAX
✔ MT03, MT07, MT09, MT10
✔ MAJESTY 400
✔ XSR700
✔ XSR900
✔ XT660

Note: Custom Firmware which has the widest compatibility on the market


Installation instruction:

For emulator installation in the case of a regular immobilizer:

1. Remove glue from the immobiliser case.

2. Take out a PCB from immobilizer and de-solder from it wires.

3. Connect the emulator according to drawing more low.

4. Insert the emulator into the immobiliser case.

Wiring:

Black wire -- emmu PIN1

Black second wire -- emmu PIN1

Yellow / blue wire -- emmu PIN2

Red / green wire --- emmu PIN3

Red / white wire -- emmu PIN4

Green wire -- emmu PIN5

-------------------------------------------------------------------------------------

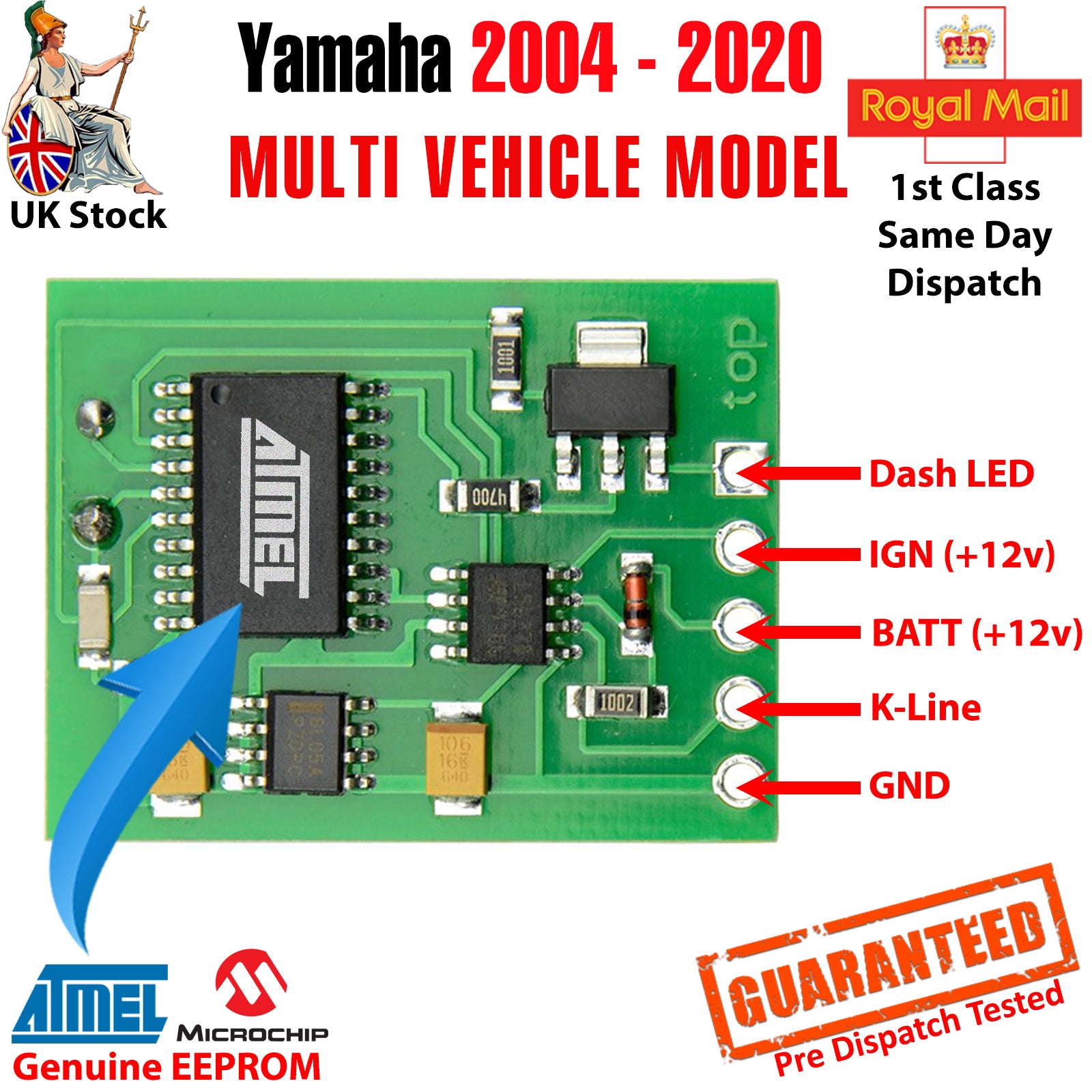

Colouring of wires and their appointment for Yamaha Immo Emulator:

Black (2 pcs.) GND

Red BATT (+12v)

Yellow IGN (+12v)

Grey LED (+5v)

Blue K-line Immo- ECU
